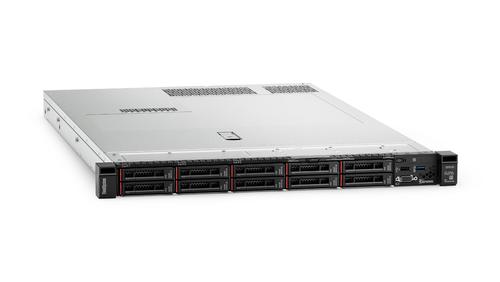

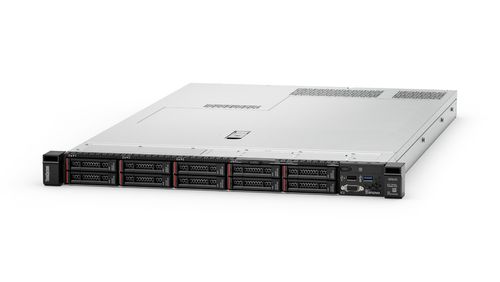

ThinkSystem SR630 Rack Server
Built for business, with business-critical versatility
- Large memory capacity
- Vast storage capacity
- Versatile storage configurations/AnyBay
- Flexible I/O configurations
- Scalable networking configurations
- Enterprise-class RAS features
- XClarity systems management
- Future defined data center
Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle
of your data center needs. ThinkSystem SR630 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, High Performance Computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offers an unprecedented combination of high capacity, affordability
and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency
and 14x higher IOPS, and greater security for persistent data built into hardware.*
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining
bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator
is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning,
and contain costs by seamlessly integrating XClarity into an existing IT environment.
Specifications
Chipset |
Intel C624 |
CPU |
1x Intel Xeon Silver 4210, 10x 2.20GHz |
RAM |
32GB DDR4-2666 (1x 32GB) (max. 768GB) |
HDD |
not available (max. 10x 2.5" hot-swap) |
Optical drive |
not available |
Extension slots |
1x PCIe 3.0 x8 (low profile) |
Graphics |
Matrox G200 (IGP), 16MB, 1x VGA |
Connectors |
3x USB 3.0, 2x Gb LAN, management port (RJ-45) |
Operating system |
not available |
RAID level |
0/1/5/6/10/50/60 (RAID 930-8i) |
Power supply |
750W, 80 PLUS Platinum |
Fan(s) |
5x |
Special features |
IPMI 2.0 |
Dimensions |
1U, 778mm (depth) |
Warranty |
three years (on site) |
